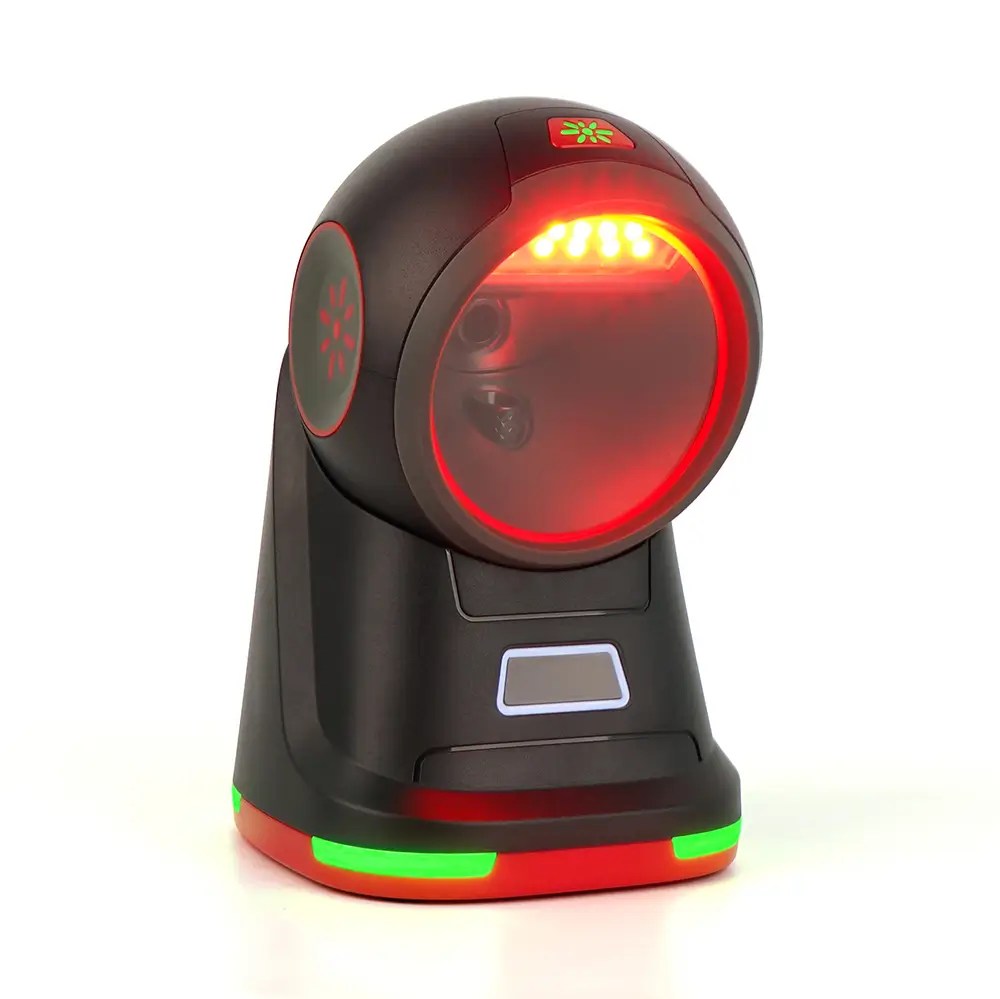

IOBC041 High-Speed Barcode Scanner
MUNBYN IOBC041 is a high-performance 2D barcode scanner designed for fast, hands-free barcode scanning across retail, logistics, warehousing, manufacturing, and other business environments. With a 1024 × 1024 high-resolution optical system and 4 m/s motion tolerance, IOBC041 delivers reliable barcode capture even when items are moving quickly—while its wide operating temperature range and lower power consumption support dependable long-term operation.
Built for Faster, More Reliable Scanning
IOBC041 combines upgraded imaging performance with efficient operation to help businesses capture barcode data quickly and consistently across different workflows.
High-Resolution Scanning
1024 × 1024 Pixel Optical System
A high-resolution optical system captures more detail for fast and reliable barcode decoding.
Faster Motion Scanning
Up to 4 m/s Motion Tolerance
Keep scanning while barcodes are moving through fast-paced and demanding workflows.
Wide Temperature Operation
-20°C to 60°C Operating Range
Maintain reliable scanning across a wider temperature range in demanding environments.
Lower Power Consumption
240 mA Working Current
Lower operating power helps reduce overall system load in continuously running applications.
Scan Automatically. Know Immediately.
Automatic Induction Scanning
IOBC041 automatically detects and scans barcodes without requiring manual trigger input, helping streamline repetitive scanning tasks.
Green Indicator
Flashes to indicate successful barcode reading and indicates power status.
Audible Feedback
Provides startup and successful scanning prompts.
Red Fill Light
Provides supplementary illumination to support barcode recognition.
Flexible Connectivity
Easy Integration with Existing Systems
IOBC041 supports multiple interfaces to simplify connection with different host devices and business systems.
USB
Drive-free connection for convenient deployment.
USB-COM
For applications requiring serial communication through USB.
RS232
For integration with compatible industrial and business equipment.
✔ POS System ✔ PC / System ✔ industrial Equipment
Application Scenarios
IOBC041 can be integrated into a wide range of barcode-based workflows where fast and reliable data capture is required.
Retail
Speed up product identification, checkout, and inventory operations.
Warehousing
Support receiving, picking, packing, and inventory management.
Manufacturing
Enable barcode-based product identification, tracking, and process management.
Inventory Management
Simplify repetitive barcode scanning for stock counting and product verification.
Ready to Upgrade Your Barcode Scanning Workflow?
Whether you are integrating barcode scanning into retail equipment, warehouse systems, logistics workflows, or industrial applications, MUNBYN IOBC041 delivers high-resolution imaging, fast motion tolerance, and reliable performance in a compact design.
Product Parameters
| Performance Parameter | |
|---|---|
| Optical System | 1024 × 1024 pixels |
| Motion Tolerance | Up to 4 m/s |
| Field of View | Horizontal: 44° / Vertical: 34° |
| Scan Method | Automatic Induction Scanning |
| Precision | 3 mil (Code 39) / 7.5 mil (Data Matrix) / 4 mil (PDF417) |
| Decoding Range | 0–320 mm* |
| Supported Symbologies | 1D & 2D |
* EAN-13 13 mil, PCS=90%.
| Supported 1D & 2D | |
|---|---|
| 1D | Codabar, Code 39, Code 32, interleaved 2 of 5, NEc 2 of 5, Code 93Straight 2 of 5, industrial, Straight 2 of 5 lATA, Matrix 2 of 5, Code 11,Code 128, ISBT 128, GS1-128, UPC-A, UPC EO, UPC-E1, EAN/JAN-8.EAN/JAN-13, ISBN, MSl, GS1 DataBar-Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded. |
| 2D | PDF417,OR code, DataMatrix, Aztec Code, china Post, HongKong 2 of 5, Korea Post, Han Xin code, Maxi code, Micro PDF417GS1 Composte coders, Codablock A, Codablock F. |
| Physical Parameter | |
|---|---|
| Dimensions | 97.6 × 98.7 × 159.9 mm |
| Weight | 294.4 g |
| Material | ABS + PC |
| Cable | 2 m straight |
| Environmental Parameter | |
|---|---|
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Relative Humidity | 5%–95% RH, non-condensing |
| Drop Resistance | Multiple 1.5 m drops to concrete |
| Electrical Parameter | |
|---|---|
| Voltage | DC 5V ±5% |
| Working Current | 240 mA |
| Standby Current | 190 mA |
Interface
USB (Drive-Free) · USB-COM · RS232
