IRT09J Rugged Windows Tablet

MUNBYN IRT09J is a 12.2-inch rugged tablet equipped with Intel JASPER LAKE N5105 processor, which delivers smooth performance and a 75% increase in CPU performance compared to the base model. With a high-brightness screen of 650nits, this tablet provides excellent visibility in outdoor environments. Additionally, MUNBYN IRT09J offers a wide range of modules and accessories to meet the needs of various industries such as warehousing and logistics, industrial manufacturing, aerospace, automotive, law enforcement, education, exploration, fisheries, healthcare, and finance.

Get Free Quote

MUNBYN Rugged Tablet

Boost Your Business Efficiency！

IRT09J

Windows 11 Pro (Home / IOT optional)

Intel JASPER LAKE N5105

16G + 128GB removable (Optional：256GB / 512GB )

Built-in: 7.4V/700mAh Removable:7.4V/6300mAh

NFC (Optional)

5MP+8MP

650nits

IP65, MIL-STD-810G 1.22m drop

PRODUCT PARAMETERS

GET FREE QUOTE

Large Full HD IPS Screen and Ten-Point Capacitive Touch

MUNBYN IRT09J industrial tablet features a 12.2-inch large Full HD IPS screen with a resolution of 1920×1200 and a screen ratio of 16:10. This type of screen significantly enhances work efficiency and provides users with a better viewing experience when handling text, images, and videos. Additionally, the screen has a ten-point capacitive touch function, allowing users to easily collaborate with one hand in any location.

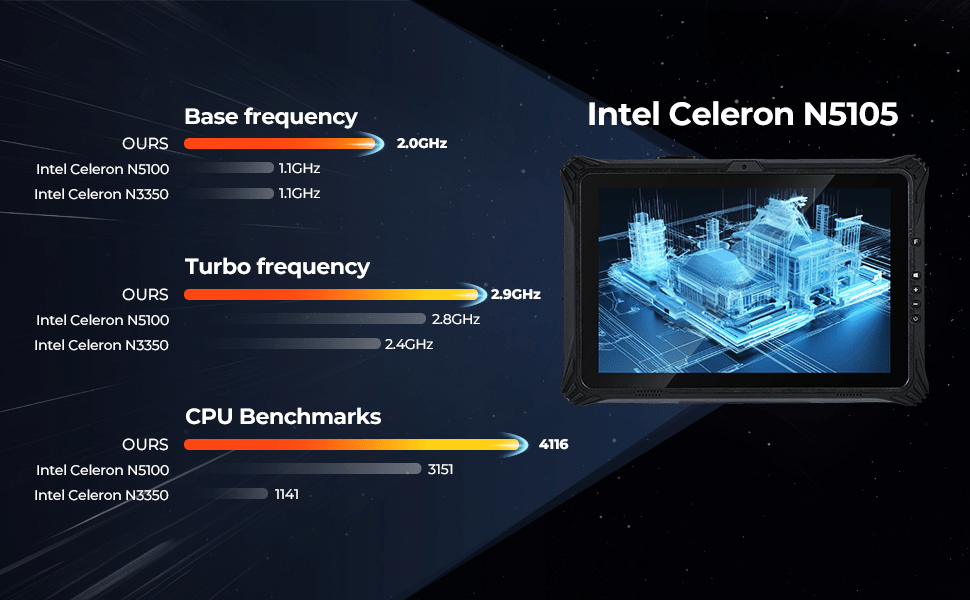

Powerful Performance, Efficient Design

IRT09J Windows rugged tablet is powered by the Intel JASPER LAKE N5105 processor, which boasts a clock speed of 2.9GHz and power consumption of only 10W. This results in a considerable improvement in performance compared to the previous generation. The tablet is also equipped with integrated Intel® UHD Graphics and a 4MB L3 cache, which provides seamless and rapid performance that is comparable to that of the Core™ i3 processor.

Expand Capacity, Accelerate Operation

IRT09J industrial tablet is equipped with 16GB RAM and 128GB SSD high memory, which can easily handle large capacity requirements and smoothly run multitasking. The SSD solid-state hard disk is removable, compatible with SATA and PCIe interfaces, plug-and-play, and easy to expand.

RAM

16GB DDR

ROM

128GB SSD removable

Optional：8 GB DDR+128GB SSD removable

Optional：256GB SSD / 512GB SSD

Excellent Heat Dissipation Design

IRT09J rugged tablet PC utilizes an active fan quiet cooling system that continuously reduces temperature and noise. The device is equipped with a large area of fan and heat pipes, providing powerful cooling effects through the bottom air intake and side exhaust.

Large-area finned heat sink

Waterproof fan design

Advanced Wireless Connectivity

IRT09J rugged tablet device is equipped with advanced 802.11a/b/g/n/ac wireless transmission technology. It supports both 2.4GHz and 5.8GHz dual-band switching, ensuring seamless connectivity and faster data transfer rates.

4G

Bluetooth 4.2

GPS/Glonass

Multi-functional NFC

Two Batteries Long Standby

IRT09J industrial tablet computer is designed with dual batteries, including a 6300mAh large battery and an 700mAh small battery. The total battery capacity is up to 52Wh, providing long-lasting battery life for users to focus on work without frequent charging.

In addition, the large battery can be easily removed and quickly charged, reducing idle waiting time.

Battery

Large battery: 6300mAh/7.4V

Small battery: 700mAh/7.4V

650nits Display & Excellent Camera Features

IRT09J outdoor tablet is equipped with a 12.2-inch capacitive screen that displays vivid and stunning graphics. With a brightness of 650nits, the tablet’s display is optimized for outdoor use, providing excellent visibility even in bright sunlight. The tablet also features a Front 2MP + Rear 8MP camera that delivers exceptional photo and video quality.

650 nits

Front 5MP + Rear 8MP

Built to Endure Any Challenge

MUNBYN IRT09J tough tablet has successfully passed rigorous independent testing and received certification for meeting MIL-STD 810G and IP65 standards. This robust device is capable of withstanding repeated drops, and exposure to extreme temperatures, high altitudes, humidity, water, and dust. You can rely on the IRT09J to endure even in the most challenging environments.

Dustproof & Waterproof

Drop-resistant

Efficient Cooling

Extreme Temperatures

Optional Accessories

Adapter

Car Charger

Vehicle Mount

Dockig Charger

Back-strap

Shoulder Strap

Removable Battery

GET BEST QUOTE

Product Parameters

Product Form	12.2 inch Rugged Tablet
Material	–
Dimension	339.3230.326mm
Weight	1500g
Product Color	Black + Black

CPU	Intel JASPER LAKE N5105 Processor 4-core 4-thread, maximum frequency 2.9GHz, embedded 4 MB SmartCache, TDP 10W
GPU	Intel® UHD Graphics 620
Memory	RAM 16GB DDR ROM 128GB SSD removable Optional：8 GB DDR+128GB SSD removable Optional：256GB SSD / 512GB SSD

Operating System	Windows 11 Pro OPtional：Windows 11 Home OPtional：Windows 11 IOT

Display	Type: LCD Size: 12.2 inch 16:10 Resolution: 1200*1920 Brightness: 650cd/㎡
Touch Pannel	10 points capacity TP, G+G, Hardness over 7H, Scratch resistant, Support 930 Proactive Pen

Camera	Front 5.0MP Rear 8.0MP -AF with flashlight

Buttons	Power 1 Volume Key + 1 Volume Key – 1 Windows Home 1 F Key *1 (Barcode Scanning, Customizable without barcode)

Speaker	8Ω/0.8W Waterproof Speaker *1
Microphone	Sensitivity: – 42db, Output impedance 2.2kΩ
Senssors	G_sensor
Fan	IPX5 Fan *1
Small Battery	Build in Lithium-ion polymer battery, Non-removable 7.4V/700mAh
Big Battery	Removable Li-polyment Battery 7.4V/6300mAh 4h ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default )

WIFI	Wi-Fi 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI
Bluetooth	BT5.0 (BLE) class1 Transmited distance：10m
4G	SLM750-VA: LTE-FDD: B2/4/5/12/13/17/18/25/26 LTE-TDD: B41 WCDMA: B2/4/5 CDMA&EVDO: BC0/BC1 GSM: 850/1900
5G （Optional）	N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N77/N78/N79 LTE-FDD:B1/B3/B5/B7/B8/B18/B19/B20/B28/B32 LTE-TDD:B34/B38/B39/B40/B41/B42 WCDMA:B1/B5/B8
GPS	U-BLOX M7N Support: GPS, glonass

I/O Interface	USB3.0 *1
	Type C (USB3.0/HDMI/Charging) *1
	∮3.5mm Standard earjack *1
	HDMI 1.4a mini *1
	SIM card *1
	TF card *1，Max: 128GB
	DC 19V 3.42A ∮5.5mm jack *1
	12PIN Pogo Pin (USB/Docking charging) *1

Adapter	US: AC100V ~ 240V, 19V 3.42A/65W Output USA Standard CE approval

Rugged Features	MIL-STD-810G: 1.22m drop
	Working temperature: -20 °C to 60 °C
	Storage temperature: -30 °C to 70 °C
	Humidity: 95% Non-Condensing

Certification	IP65
	CE-NB
	CCC
	MIL-STD-810G
	Battery: UN3803, MSDS, IEC62133, aviation report, marine report

Data Collection	NFC Optional, NXP300
Data Collection	Fingerprint Built-in

Expansion Module	RJ45 board (10/100M) Ethernet interface *1	1 out of 4
	DB9 board Optional (RS232) *1, 9-line full function
	USB2.0 Optional USB2.0 *1, Big USB
	QR Code Scanner Optional Honeywell N3680 hardcode, Optical resolution: 5mil, scan speed: 50 times/s

Any question？ Please contact us, we will help you find the best solution for your specific environment and requirements.
