IRX16 Rugged Laptop
Power Your Business Anywhere.
Boost your productivity with the MUNBYN IRX16 Rugged Laptop—built for speed, durability, and efficiency. Powered by Windows 11 Pro and DDR5 memory, it handles heavy industrial software with ease. A 1000-nit sunlight-readable display keeps your work visible anywhere, while WiFi 6 ensures seamless connectivity. With IP65 protection and MIL-STD-810H certification, the IRX16 is engineered to withstand dust, water, and drops, making it the ultimate tool for logistics, field service, and mission-critical tasks.
MUNBYN Rugged Laptop
Power through any challenge
IRX16
Intel® Core™ i5-1235U/i7-1255U
16GB (Optional: 32GB )+ 256GB
Hot-swappable: 4700mAh/7.4V Built-in: 1300mAh
1000 Nits Sunlight Readable
Wi-Fi 6
Extra Large 15.6-inch Display with Enhanced Capabilities
Compared to the IRX15, the MUNBYN IRX16 rugged laptop delivers four significant upgrades tailored for demanding industrial and enterprise applications:
Latest Windows 11 Pro System – Equipped with the newest Windows platform, offering reinforced security, advanced productivity tools, and long-term compatibility for business-critical operations.
High-Performance Intel® Processor – Powered by the 12th Gen Intel® Core™ i5-1235U, the IRX16 ensures smooth multitasking and reliable performance for resource-intensive software commonly used in engineering, design, and field management.
Sunlight-Readable Display – A 1000-nit ultra-bright screen guarantees excellent visibility in direct sunlight, ensuring uninterrupted workflow in outdoor and harsh environments.
Next-Gen Connectivity – With Wi-Fi 6 technology, the IRX16 delivers up to three times faster speed and improved stability over Wi-Fi 5, supporting seamless real-time communication, data transfer, and remote monitoring.
Dual Batteries with Hot-Swap Capability
The MUNBYN IRX16 rugged laptop is designed for uninterrupted operations, featuring a 4700 mAh replaceable battery combined with a 1300 mAh built-in backup battery (total 6000 mAh). The hot-swappable design allows battery replacement without powering down the device, ensuring zero downtime, data integrity, and continuous productivity in mission-critical environments.
Enterprise-Grade Fingerprint Security
Integrated with advanced fingerprint recognition, the device provides fast, secure, and user-specific access control. This not only safeguards sensitive business data but also streamlines authentication for enterprise users, reducing reliance on traditional passwords.
Backlit Keyboard for Any Environment
The backlit keyboard enables efficient and comfortable operation in low-light or night-time conditions, making it ideal for fieldwork, logistics hubs, and emergency response scenarios where visibility may be limited.
Integrated GPS Navigation
The MUNBYN IRX16 rugged laptop comes with an advanced GPS navigation system, ensuring accurate positioning and route guidance for field teams. Whether in construction sites, logistics operations, or remote areas within signal coverage, it enables reliable navigation and task execution without disruption.
Enterprise-Grade Cooling System
Equipped with a high-performance cooling fan, the IRX16 is built to withstand continuous, high-load operations. The efficient thermal management system prevents overheating, ensuring stable performance, extended component lifespan, and reduced downtime—critical for industrial and mission-critical environments.
Ergonomic Handle Design
Designed with mobility in mind, the IRX16 features a durable, ergonomic handle that provides a secure and comfortable grip. This makes it easier for professionals to carry the device between worksites, enhancing portability without compromising rugged durability.
Application Range
Various modules and accessories can be selected to meet customers’ application in various industries.
Power Maintenance
Equipment Testing
Automobile Manufacturing
Energy Industry
Unmatched After-Sales Assurance
With MUNBYN Care, your investment is protected by a 2-year warranty and lifetime technical support. Our dedicated service team ensures fast response and professional assistance whenever you need it, keeping your operations running smoothly.
Within the first two years of purchase, customers are entitled to one complimentary replacement for non-human-induced damage, providing peace of mind and minimizing downtime in critical business operations.
Get Best Quote
Product Parameters
| Product Form | 15.6-inch Rugged Notebook |
| Material | ABS+PC |
| Dimensions | 407*305.8*45.5mm |
| Weight | 3.52kg |
| Product Color | Black |
| CPU | Intel i5-1235U, TDP15W,2P-Cores,8E-Cores,12threads;Speed: 0.9GHz~4.4GHz Optional: i7-1255U, TDP15W,2P-Cores,8E-Cores,12threads;Speed: 1.2GHz~4.7GHz |
| GPU | Intel® Iris® Xe Graphics eligible |
| Memory | RAM 16GB DDR5 （4800MHz） Optional: 32GB DDR5 ROM 256GB SSD |
| SSD | Optional: 1*SSD (Expansion Slot) |
| TPM | Built in TPM2.0 |
| Hall | Hall |
| Operating System | Windows 11 Pro Optional: Windows 11 Home Windows 10 IOT |
| Display | Type: FHD Size: 15.6-inch 16:9 Resolution: 1920*1080 Brightness: 1000cd/㎡ |
| Touch Pannel | Optional 10-Point Capacitive Screen, G+G, Corning Gorilla Glass; Hardness above 7H; Scratch-resistant; Supports glove touch |
| Camera | Front 5.0MP |
| Buttons | Power Button *1 P Key *1 (one-click screen off/on) RF *1 (toggle switch, enable/disable wireless functions) |
| Speaker | Built in 4Ω/3W *2 |
| Microphone | Internal MIC *1 |
| Battery (Built in) | Built-in Polymer Lithium-ion Battery, Non-removable 1300mah/11.1V (14.4WH) 1.5hrs (Default 50% volume, 200 lumens brightness, playing 1080P HD video) |
| Battery (Hot-swappable) | Removable Polymer Lithium-ion Battery, Hot-swappable 4700mAh/11.4V（53.58WH） 5 hours and 24 minutes (playing 1080P video, conditions: 300 lumens at room temperature, 70dB at 10cm) |
| WIFI | Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax |
| Bluetooth | BT5.1 (BLE) class 1 Transmission Distance: 10m |
| 2G/3G/4G | 4G (Optional M.2 European standard) LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 |
| 5G | 5G Optional M.2 5G NR NSA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79/ SA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 LTE LTE-FDD B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71 LTE-TDD B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 LAA B46 UMTS WCDMA B1/ 2/ 4/ 5/ 8/ 19 |
| GPS | Supports single GPS or single glonass, default GPS |
| NFC | Optional, NXP300 |
| Fingerprint | Built in, ×1 SPI Fingerprint (Power-On Login) |
| Keyboard | US Layout Keyboard with Backlight |

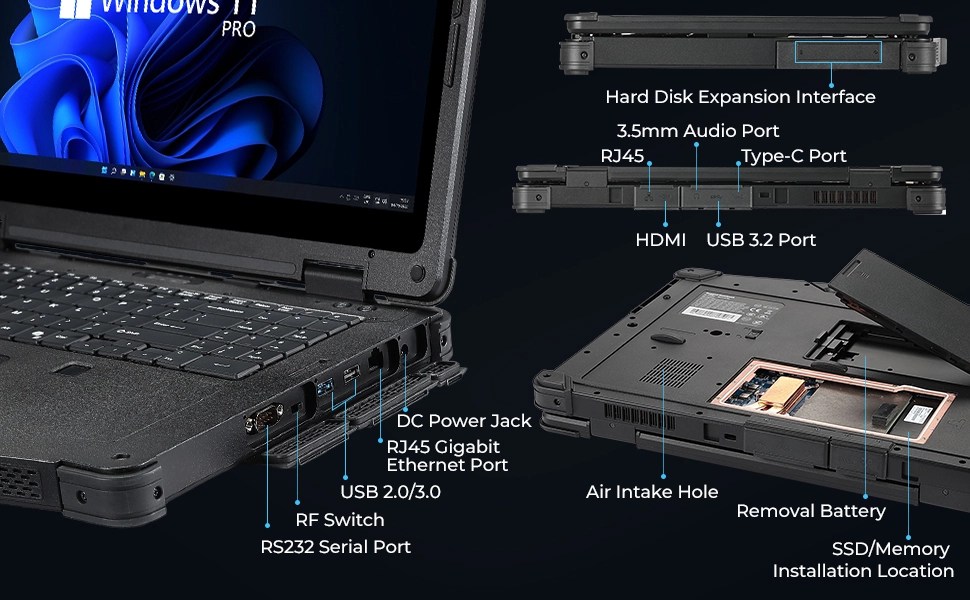

| I/O Interfaces | USB3.2 *1, USB3.0 *1, USB2.0 *1 |
| TYPE-C, Supports Thunderbolt 4 | |
| ∮3.5mm Standard Earphone Jack *1 | |
| HDMI 2.0a mini x1 | |
| SIM *1 | |
| TF *1 | |
| RJ45*1 10M/100M/1000M adaptive RJ45*1 10M/100M/1000M adaptive, Supports Gigabit Protocol |
|
| RS232 *1, 9 fully functional lines | |
| DC19V/3.78A ∮5.5mm Power port *1 | |
| 12PIN Pogo Pin (USB & charging) *1 Optional | |
| Anti-theft Lock Slot *1 | |
| Right-side Cooling Vent *1 | |
| Left-side expansion slot, optional M.2-2280 PCIe interface *1, supports SSD; Optional: M.2, E-KEY, PCIE interface *1 for custom modules. | |
| Camera Indicator Light | ×1 Constant white light when active, light off when inactive. |
| Power Indicator Light | ×1 Constant blue light when power on, light off when off. |
| Battery Indicator Light | ×1 (Dual-color red/green) Red when charging, green when fully charged, blinking red for low battery, light off during discharge. |
| Caps Lock Key | ×1 Red light on indicates caps lock on, off indicates caps lock off. |
| Airplane Mode Indicator Light | ×1 Red light on indicates airplane mode on, off indicates airplane mode off. |
| Adapter | DC input 100-240VAC0.5A50/60Hz DC19V/3.78A 71.82W American Standard Optional: European Standard |
| Rugged Features | MIL-STD-810H: 1.2m drop resistance |
| Working temperature: -20 °C to 60 °C | |
| Storage temperature: -30 °C to 70 °C | |
| Humidity: 95% Non-Condensing | |
| Certifications | IP65 |
| CE, UN3803, Optional FCC, CCC | |
| MIL-STD-810H | |
Any question？ Please contact us, we will help you find the best solution for your specific environment and requirements.
